Nanoflash
16 €
Dimensions: 15 mm x 9 mm x 5 mm
Safe shopping
Types of deliveries and payments:
[see details]
Complaints and returns:
[see details]
Guarantee safe & secure checkout

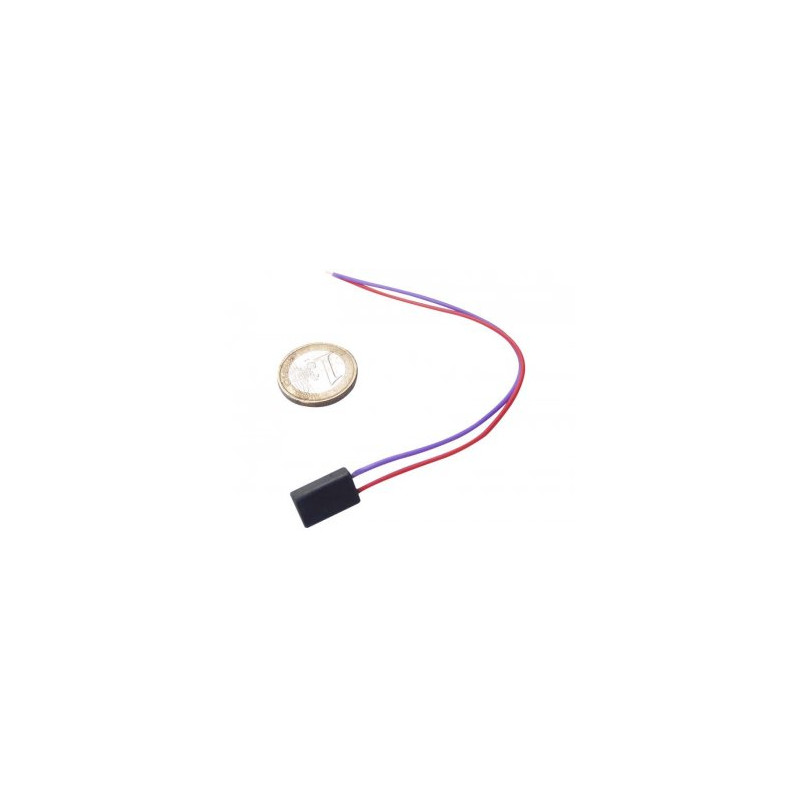

Nanoflash
The Nanoflash is one of the worldwide smallest electronic flasher relay on the bike market. With a size of 15 mm x 9 mm x 5 mm will it fit almost everywhere in your bike. The Nanoflash can handle loads between 0,1 Watt and 42 Watt. It replaces the standard flasher relay in custombikes. The Nanoflash is the first choice when the available space for the installation is small. The flasher speed is - of course constant if the load is minimum 0,1 Watt, no matter if modern led lights or traditional halogen light bulbs are be connected.
20 Items
Data sheet
- Manufacturer
- 27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28 - Dimensions
- 15 mm x 9 mm x 5 mm
15 mm x 9 mm x 5 mm - Body material
- ABS
- Input voltage range
- 8 - 18 Volt
- Maximum current
- 3
5 Ampere - Maximum power
- 42 Watt
- Producent
- 27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
