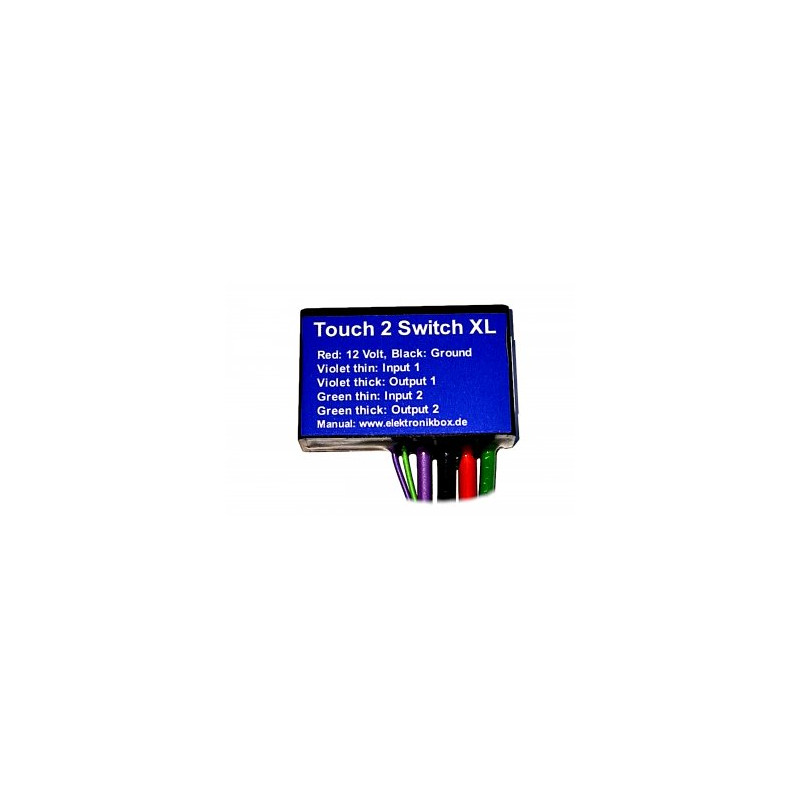

Touch 2 Switch XL

Sometimes there is only a need for 1-2 switch channels what don't require a complete control box. This electronic relay have 2 independent channels what are controlled by 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off. Each output can drive 240 Watt. The maximum power is 360 Watt per module. This allow the switch for additional headlights or other high current loads.

Maximum ambience temperature: 80 degree Celsius

10 Items

Data sheet

Dimensions
5 mm
40 mm x 25 mm x 12
Body material
ABS with 2k epoxy resin potted
Input voltage range
6 - 18 Volt
Maximum temperature
80°C
Maximum current
20 Ampere / output
Maximum power
360 Watt / module
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
