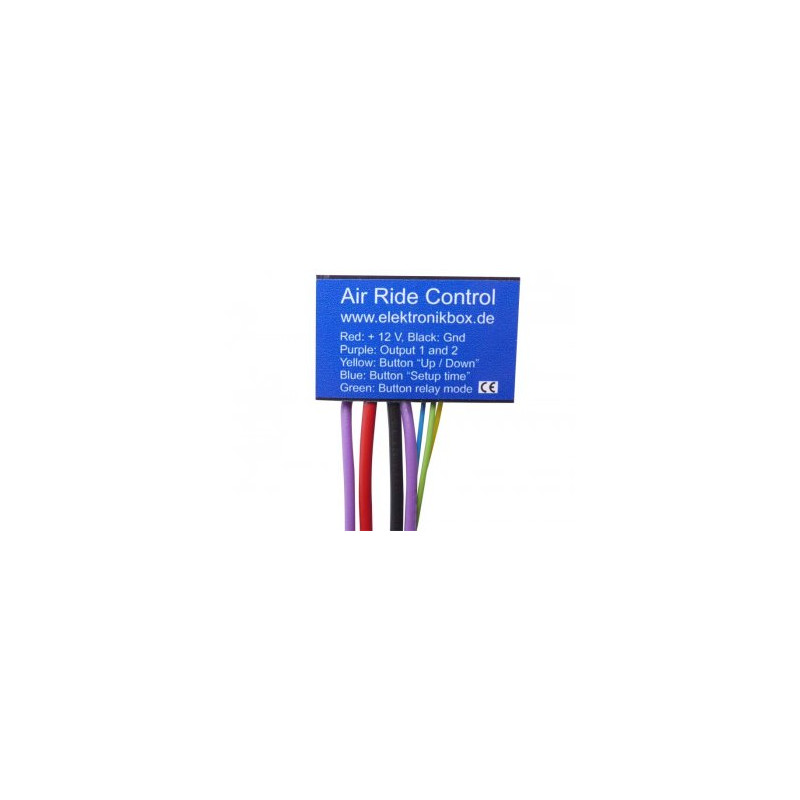

Air Ride Control

This Air Ride memory unit save and recall the pump up time and the valve open time. It allow the user to save and recall individual heights of your bike. The 2 outputs can drive loads with a power of up to 350 Watt peak and 200 Watt continous. The individual height can set and store via the following procedure:

  • Press the button and switch on the ignition. The pump will start immediately.
  • Hold the button until your bike have the preferred height.
  • Release the button and press it again until the bike is in the lowest position. That's it.

The Air Ride Control switch on the pump the next time and recall the adjusted height when you switch on the ignition and it open the valve when you switch off the ignition.

10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
40 mm x 25 mm x 12
40 mm x 25 mm x 12
Input voltage range
7 - 18 Volt
Maximum power peak
350 Watt
Maximum power continuous
200 Watt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
