Fuel Indicator
    Fuel Indicator

Fuel Indicator

41 €
The adjustment of the reserve level is easy: Just connect the module, fill the first required amount of gasoline in the tank and hold the green cable for a moment to ground / Minus. Now the module have store the first value. Then fill the next gasoline level in the tank and repeat the procedure and the module have stored the second fuel level.
Quantity
In stock




Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

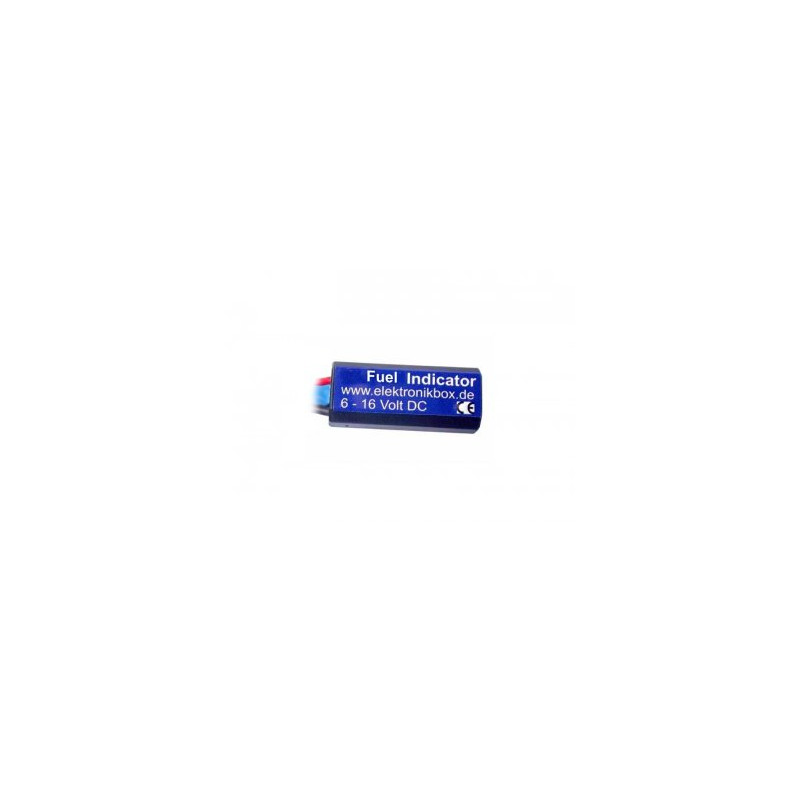

Fuel Indicator

This reserve indicator works together with every potentiometer based fuel sensor. You can store 2 different values of fuel in the module. The included 5 mm LED flashes if the fuel amount is below of the first value. The LED is continous on if the fuel value is below of the second value.

The adjustment of the reserve level is easy: Just connect the module, fill the first required amount of gasoline in the tank and hold the green cable for a moment to ground / Minus. Now the module have store the first value. Then fill the next gasoline level in the tank and repeat the procedure and the module have stored the second fuel level.

Input voltage range: 7 - 18 Volt

16 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
7 - 18 Volt
Reserve levels
2 programmable
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
