Multi Flasher SB
    Multi Flasher SB

Multi Flasher SB

43 €
Dimensions: 38 mm x 16 mm x 11 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

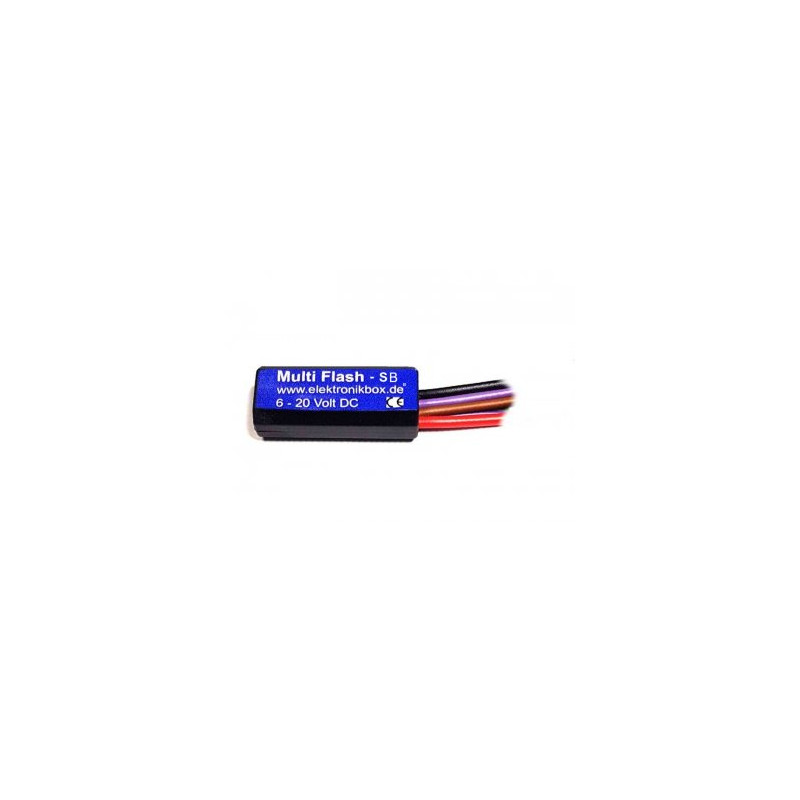

Multi Flash SB

This flasher relay is controlled via the standard 3 way locking switch, what is still implemented in many vintage bikes. The flasher frequency is independent from the load. An emergency flasher function can be activated by a fast switching between the left and right position. An auto cancel function can be activated by wiring the green cable to ground, resulting that the indicator switch off after 40 flashes.

10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
7 - 18 Volt
Maximum temperature
80°C
80°C
Maximum current
5 Ampere / output
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
