Universal Relaybox RB-10
    Universal Relaybox RB-10

Universal Relaybox RB-10

225 €
- 10 outputs with 10 Ampere maximum / each allow the control of the most loads in a car.
Quantity
In stock




Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

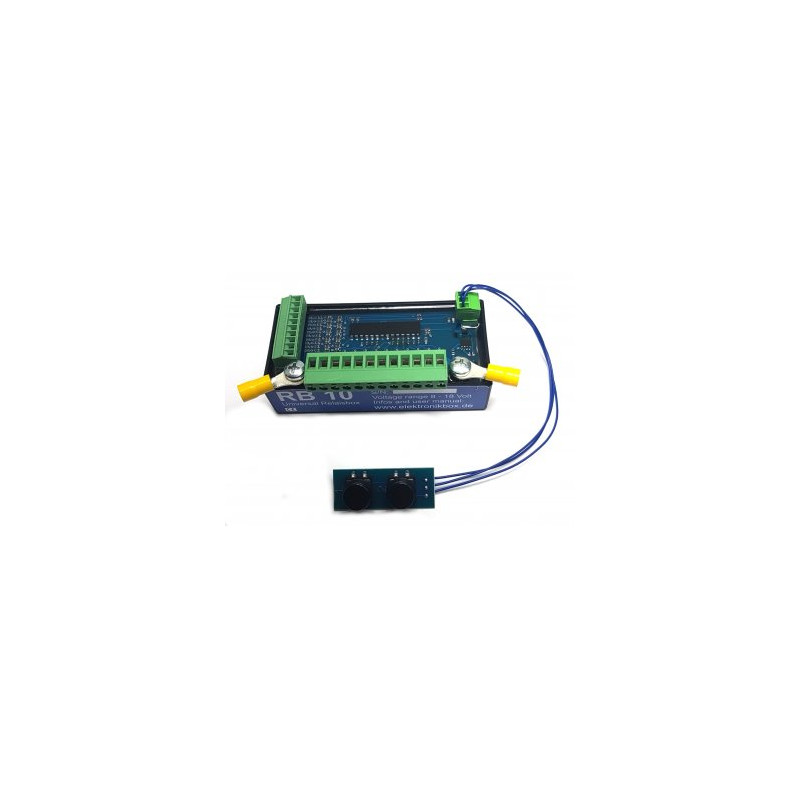

Universal Relaybox RB-10

The Universal Relaybox RB-10 allow the control of up to 10 individual loads. The following functions are integrated:

  • 10 outputs with 10 Ampere maximum / each allow the control of the most loads in a car.
  • Every input can be user configured as button input or switch input.
  • Every input can be configured for a control of the switch or button to ground or + 12 Volt.
  • Every output can switch only if the ignition switch is on or independent of the ignition switch status.
  • Every output can be adjusted for the drive of direction indicators. The flasher frequency is independent from the connected load.
  • 11 integrated led's allow the control of the outputs while the installation and programming.

The different functions are adjustable via 2 push buttons. Input voltage range: 7 - 18 Volt

4 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Input voltage range
7 - 18 Volt
Number of outputs
10
10
Maximum current per output
10 Ampere
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
