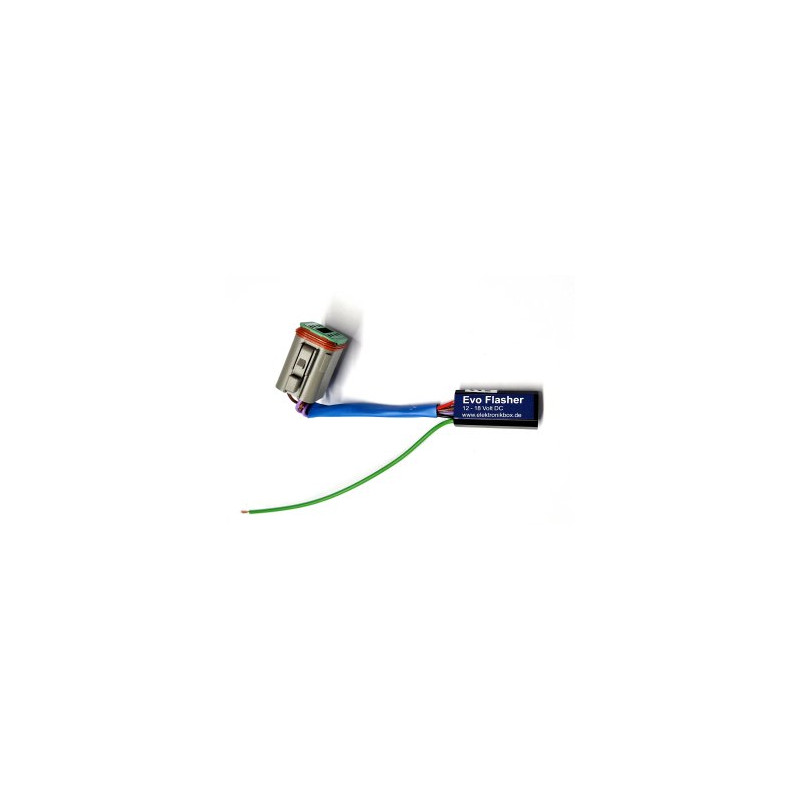

Evo Flasher 1
    Evo Flasher 1

Evo Flasher 1

69 €
An auto-cancel function is integrated into the module. The corresponding output flashes 4 times when a turn signal button is pressed briefly for less than 0.5 seconds and then switches off. This function can be used for overtaking. If the button is pressed for longer than 0.5 seconds, the output flashes 40 times. The auto-cancel function can be deactivated by connecting the green wire to ground.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Evo Flasher 1

This module replaces the old Harley turn signal module 68570 94B and, thanks to modern electronics, is significantly smaller and more robust than its predecessor.

An auto-cancel function is integrated into the module. The corresponding output flashes 4 times when a turn signal button is pressed briefly for less than 0.5 seconds and then switches off. This function can be used for overtaking. If the button is pressed for longer than 0.5 seconds, the output flashes 40 times. The auto-cancel function can be deactivated by connecting the green wire to ground.

A hazard warning light function is also integrated. This is activated by simultaneously pressing the left and right turn signals and deactivated by pressing either button.

The flashing speed is independent of the connected load, so LED turn signals or halogen bulbs can be used.

10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Input voltage range
7 - 18 Volt
Replaces
Harley TSM module 68537-89G
Harley TSM module 68540-96
Harley TSM module 68570 94B
Harley TSM module 68570 94B
Auto-cancel short press
4 flashes
Auto-cancel long press
40 flashes
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
