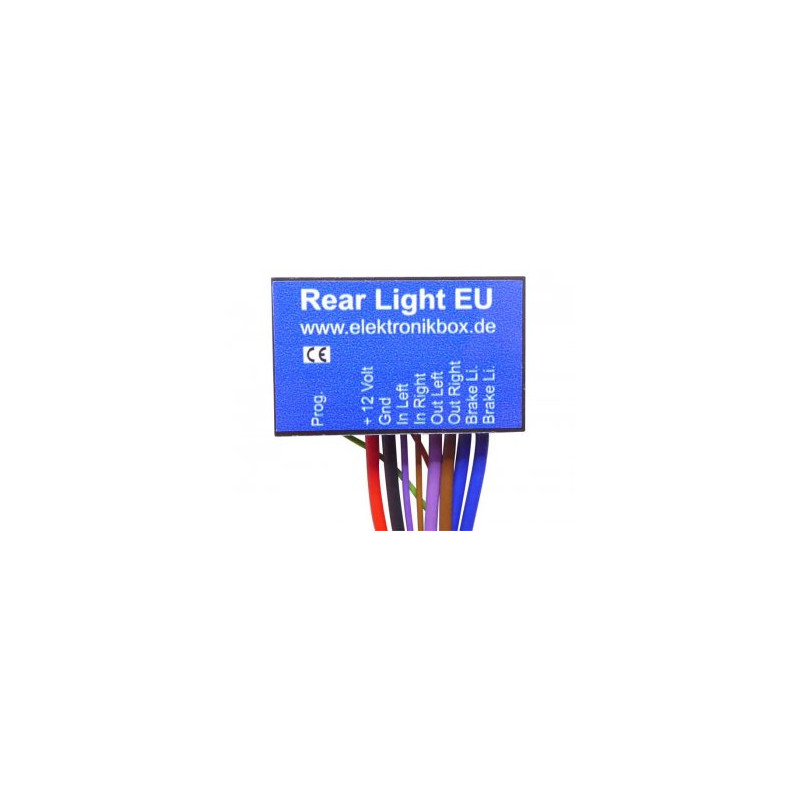

Rear Light EU
108 €
The Rear Light EU is a module for bikes with emergency flasher function. It converts the two signals from the original flasher / brake light combination in four separate outputs for brake light / rear light and indicators. A conversion of an US bike according to the requirements in the EU is much easier and less cost intensive with this new module.
Safe shopping
Types of deliveries and payments:
[see details]
Complaints and returns:
[see details]
Guarantee safe & secure checkout
Rear Light EU
Almost every bike what runs in US have a brake light / indicator combination in the way, that 2 lamps works as brake light and as indicator as well. This makes a conversion of an imported bike according to the requirements in the EU a bit tricky and cost intensive.
The Rear Light EU is a module for bikes with emergency flasher function. It converts the two signals from the original flasher / brake light combination in four separate outputs for brake light / rear light and indicators. A conversion of an US bike according to the requirements in the EU is much easier and less cost intensive with this new module.
A brakelight dim function is activated by default. In this case is the brightness of the brakelight dimmed down to 30% if no brakeswitch is be pressed.
Maximum ambience temperature: 80 degree Celsius
10 Items
Data sheet
- Manufacturer
- 27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28 - Dimensions
- 5 mm
5 mm
5 mm
5 mm
5 mm
40 mm x 25 mm x 12
40 mm x 25 mm x 12
40 mm x 25 mm x 12
40 mm x 25 mm x 12
40 mm x 25 mm x 12 - Body material
- ABS
- Input voltage range
- 7 - 18 Volt
- Maximum temperature
- 80°C
80°C - Output power
- Max. 21 Watt / Output
- Compatible with
- Indian bikes
- Producent
- 27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
