D-Box
    D-Box

D-Box

167 €
- Integrated flasher relay, contol with buttons or switches
Quantity
In stock




Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

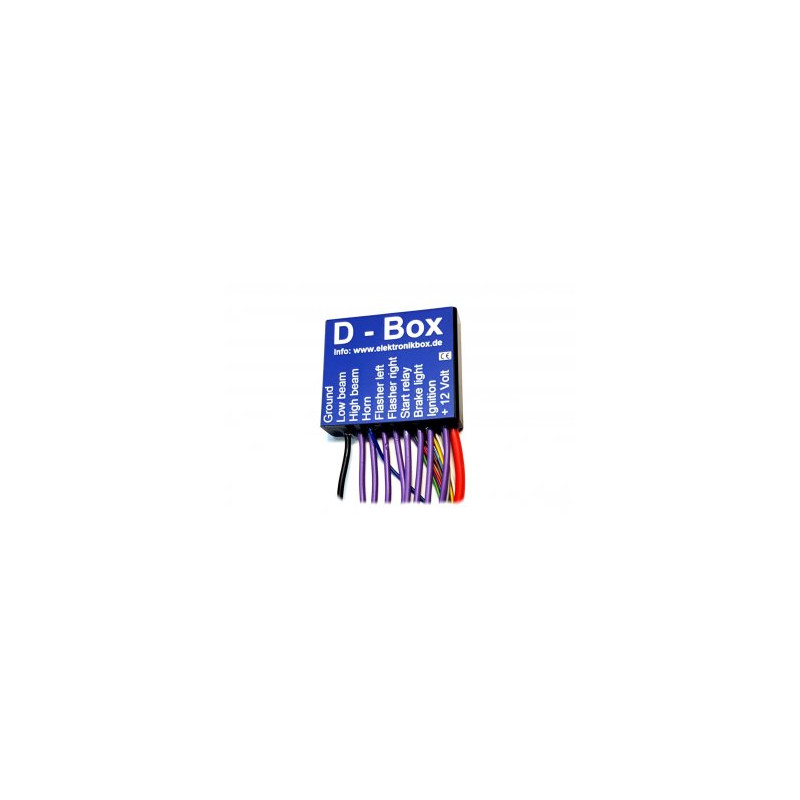

Electronicbox Version D

This electronic box version D is probably the most flexible control box on the market. It controlls the main functions of your motorbike with push buttons or switches. The following options are possible:

  • Integrated flasher relay, contol with buttons or switches
  • Integrated output for direction indicator in the cockpit
  • Integrated sidestand - and neutralswitch inputs if security options in the box are activated
  • Auto flasher off function, emergency flasher, "Position light" mode adjustable
  • An additional output for the flasher indicator led in the speedo reduce additional wirings.
  • Control of low - and high beam possible with a button or a switch
  • Control of starter relay
  • Control of the horn
  • Brake light control
  • Aux output for rearlight, platelight and speedo power.
  • 8 status led's at the outputs give a visible response of the power outputs.

The new D-Box can be controlled via only 2 push buttons and there is no need for the use of a key switch anymore. The key switch is optional. Our 8 mm stainless steel push buttons fit in the most handle bars. The D-Box can be controlled with switches as well for a more traditional installation.

Maximum output current: 5 Ampere for Headlight, 3 Ampere for the other outputs, current limited by 5 Ampere

15 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm x 52 mm
5 mm x 52 mm
50 mm x 12
50 mm x 12
Body material
ABS plastic
waterresist potted
Input voltage range
7 - 18 Volt
Maximum output current
5 Ampere
Maximum temperature
80°C
80°C
Power consumption
7 mA
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
